Structural repair · Topeka, KS
Frame Repair & Reconstruction
Substantial corrosion and structural damage can require far more than a patch. Schmelzle MechFab evaluates the frame, removes compromised material, and fabricates repair or replacement structure around the actual project.
Discuss a frame project
Repair at the structural level
When the original frame can no longer do the job
Frame work begins with the condition that is actually present. Severe rust, failed mounting areas, and compromised sections may call for removal, reconstruction, or fabricated replacement pieces rather than a surface repair.
This is structural fabrication and repair work—not general mechanical service. Project suitability depends on access, the extent of damage, surrounding structure, intended use, and whether a sound repair path can be established.
A documented reconstruction
Corroded structure to fabricated replacement
This sequence shows the scale of work involved when badly deteriorated structure must be exposed, removed, rebuilt, and fitted back into the vehicle.

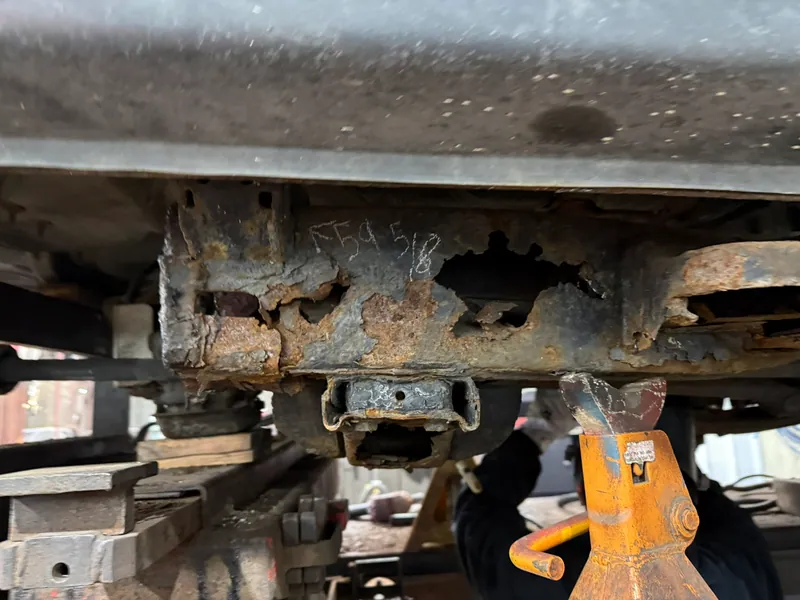

01Severe corrosion
Inspection exposed extensive perforation and loss of sound frame material.

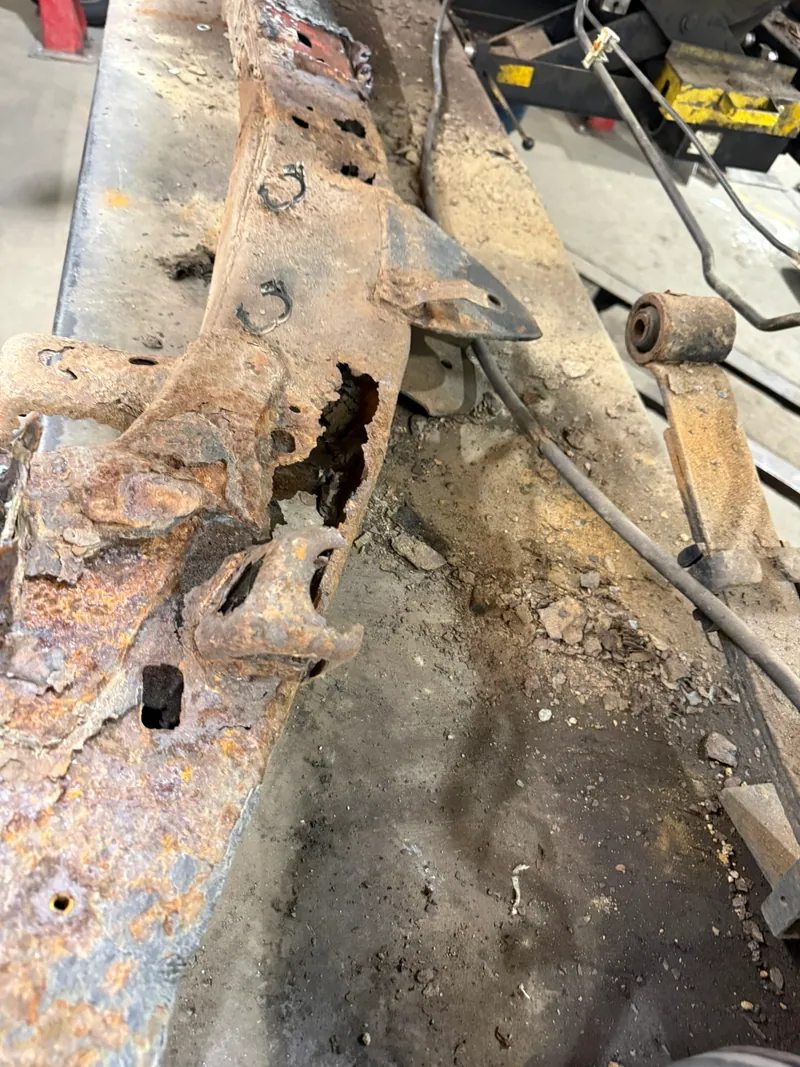

02Damaged structure removed
Compromised material was taken out so the reconstruction could begin from usable structure.
03Vehicle and frame separated
The body was supported while the original frame and repair area were made accessible.

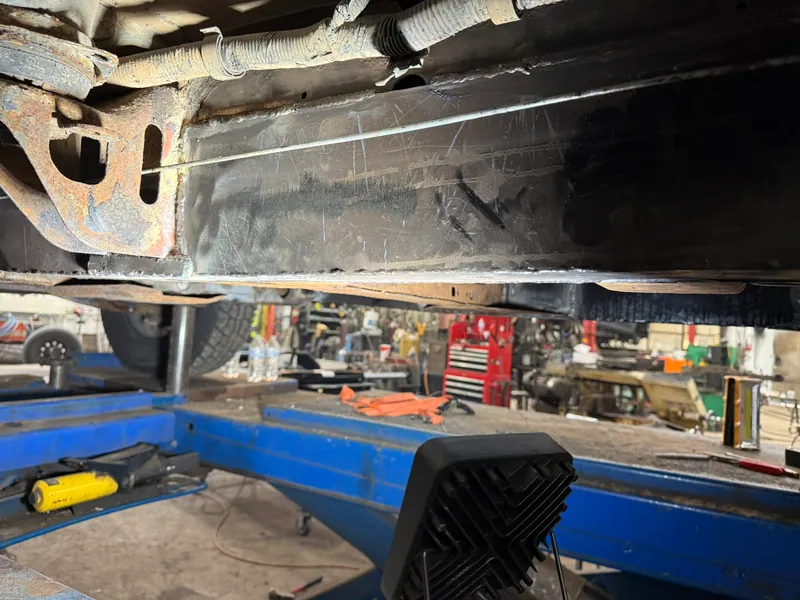

04Replacement sections fitted
New steel structure was fabricated and fitted around the surviving frame and mounting areas.

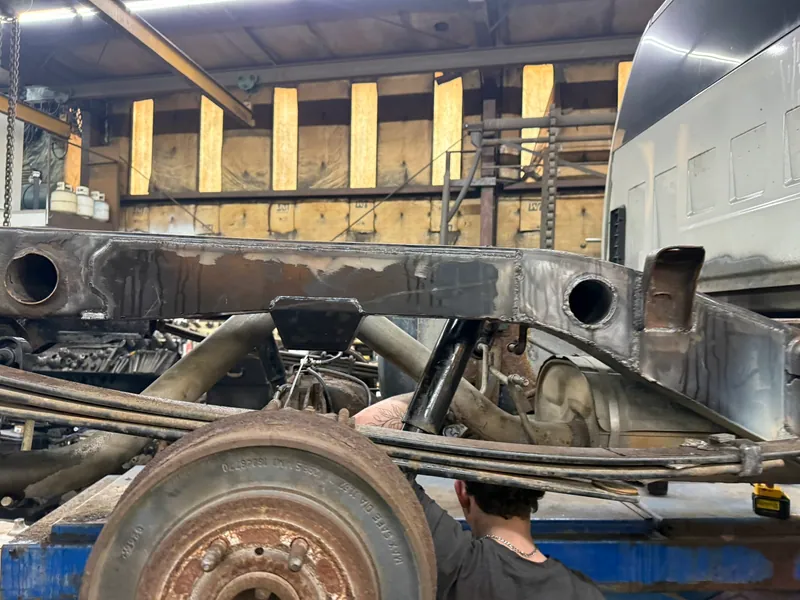

05Structural frame reconstructed
The finished repair restores continuous fabricated structure through the damaged area.

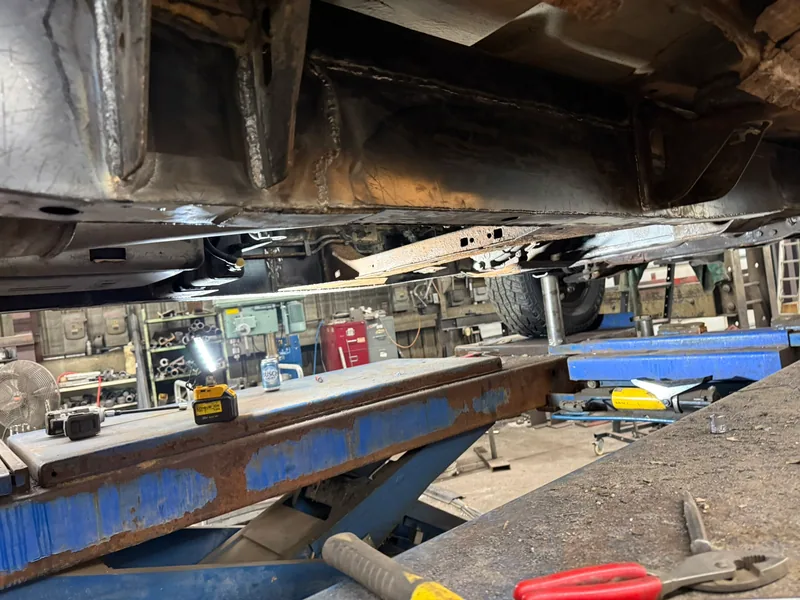

06Reconstruction from below
The underside view shows the extent of the fabricated replacement structure.
Toyota pickup project
A custom-built replacement frame
The Toyota pickup shown here received a custom-built replacement frame because its original frame was rusted beyond repair. The project is a clear example of Schmelzle MechFab taking on structural work that falls well outside ordinary automotive parts replacement.
Every frame project is evaluated individually. Clear photographs of the damage and the vehicle or equipment application help the shop determine whether an in-person inspection makes sense.
Ask the shop to evaluate a frame project
